Process documentation
Cobalt documents a plant's process at two levels from the same video: a value stream map of how a unit moves between stations, and SOPs for how the work is done at each one.
The value stream map
A value stream map shows each step a unit passes through, how long it is worked on at that step, and how long it waits before the next. It is normally built from interviews and a floor walk, and reflects what people believe. Cobalt builds it from video and, where they exist, job records.
Current-state value stream map
One canister family. Median queue before each step, and hours worked at it.
- 2.0 dCut and form3 h
- 1.5 dRoll2 h
- 2.5 dLong seam4 h
- 7.0 dFit-up: heads6 h
- 3.0 dCirc seams9 h
- 8.5 dFit-up: nozzles5 h
- 2.5 dNozzle welds7 h
- 5.0 dRadiography2 h
- 2.5 dPressure test2 h
- 2.5 dFinish3 h
- Lead time
- 50 days
- Queued
- 37 days
- Worked on
- 43 hours
- Share of lead time worked on
- 3.6%
SOPs and visual work instructions
An SOP, or standard operating procedure, is the written method for a job. Cobalt identifies the best-observed method, in sequence and staging rather than technique, and writes it down step by step. Each step is illustrated, so that a new hire can follow it at the station.
Standard work: fit up and tack, head to shell
Best-observed method, Fit-up Station A. Reviewed with the station's leads.
- Steps
- 6
- Standard time
- 41 min
- Revision
- A
- Step 13 min
Confirm the drawing revision and weld map
Stop if the revision does not match the traveler.
- Step 26 min
Stage the shell, head and tack consumables
Staged by the material handler before the shift, not by the fitter.
- Step 38 min
Set the shell on the rollers and level it
Level before the head is lifted. Re-levelling under the crane holds the crane.

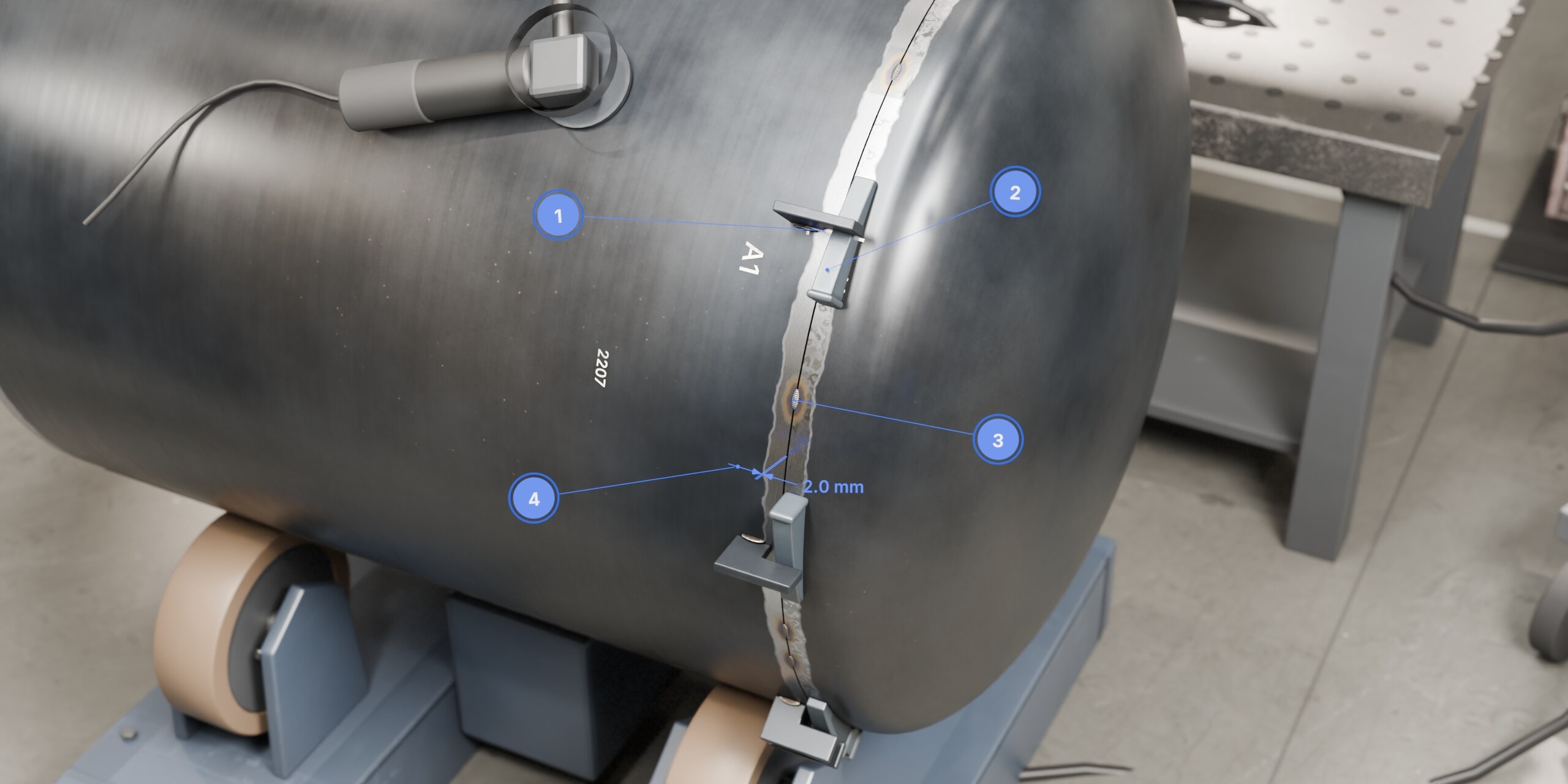

- Step 412 min
Align the head and check the gap
A gap over 1/8 in goes back to forming. It is not welded up.
- Step 59 min
Tack at four points in opposite pairs
Re-check the gap after the second tack.
- Step 63 min
Sign the traveler and call the hold point
Call the inspector now, so the booth is not left waiting.
